Empower your Vehicle to Make Real-Time Decisions

The AutoTRap Onboard® automatic target recognition (ATR) app empowers your autonomous underwater vehicle to act on sonar data in real time.

Introducing AutoTRap Onboard, Charles River Analytics’ new target recognition app

When AutoTRap Onboard recognizes objects on the seafloor, your AUV can investigate further on its own—there’s no need to surface, review data, and re-deploy it with a new mission.

AutoTRap Onboard has been developed, tested, and deployed on the market-leading Teledyne Gavia line of AUVs, and is extensible to other sonar systems and platforms, including towed sonar systems.

Product Capabilities

Deep Learning for sonar data

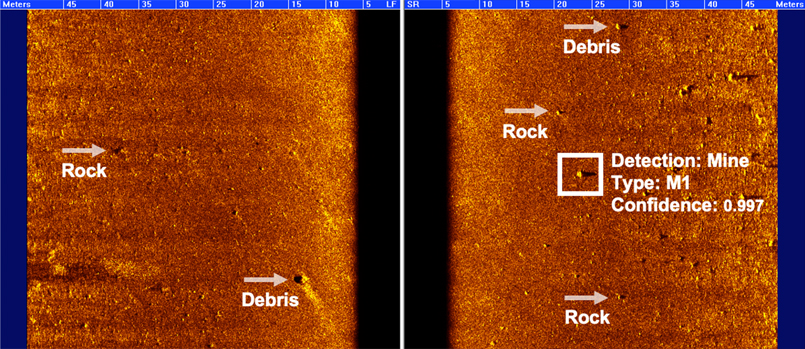

AutoTrap Onboard applies recent advances in deep learning object detection and representation to locate and classify objects in sonar data.

Image from AutoTRap OnBoard Project from Charles River Analytics.

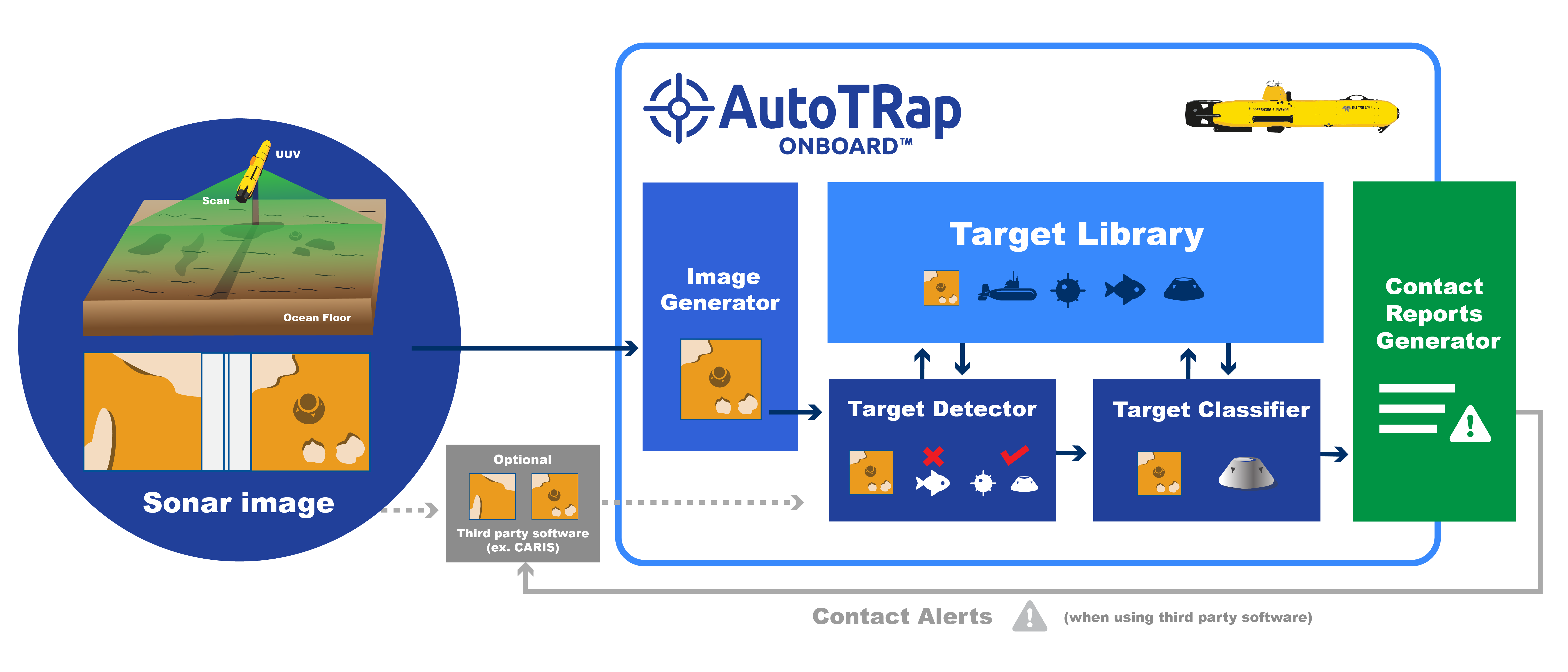

When objects are detected, AutoTrap Onboard provides contact alerts to your system

  • Target Detector and Target Classifier – Locates and recognizes objects of interest—in real time. Without accurate object detection and classification, your team must manually analyze sonar data, which can be time-consuming and error prone. AutoTRap Onboard has demonstrated excellent detection rates and false positive rates; for example, identifying truncated conical objects on a rocky volcanic seafloor with a 90% probability of detection.

  • Target Library – Contains objects of interest on which AutoTRap Onboard has been trained. The AutoTRap Onboard architecture supports a wide range of potential targets—mines, shipping containers, pipelines, human forms, and more. To provide highly accurate detection and classification of new objects not in the current library, Charles River Analytics provides services to train AutoTRap Onboard on new targets.

  • Real-Time Contact Alerts – Provides the object’s type, confidence of detection, and position to any downstream system, such as your vehicle’s navigation and control or mapping software.

AutoTRap Onboard's architecture supports the detection of shipping containers,
oil pipelines, human forms, black boxes, and more.

Image from AutoTRap OnBoard Project from Charles River Analytics.
Image from AutoTRap OnBoard Project from Charles River Analytics.
Image from AutoTRap OnBoard Project from Charles River Analytics.

Product Advantages

AutoTRap Onboard supports real-time autonomous behavior for mission operations or command and control.

  • Enhanced autonomy – Without real-time object detection, your AUV just collects sonar data and returns it to the surface for analysis. To take action on the data, like rerouting to perform a closer inspection, your team must repeat the launch and recovery process. With real-time detection, your AUV’s navigation and control software is empowered to make more effective decisions—on its own.
  • Reduced deployment cost and time – With real-time detection, your AUV can accomplish more complex mission goals in a single deployment, reducing mission cost and time.
  • Increased mission resilience – In unfavorable environmental conditions such as rough seas, deploying your AUV can be challenging. Reducing the number of launch and recovery cycles means you can save power and search a wider area, and enables you to better plan your mission against environmental factors.
Image from Charles River Commercial project AutoTRap - Scan 2.

Third Party Software

Image from Charles River Commercial project AutoTRap - Scan 1.

AutoTRap Onboard

AutoTRap Onboard’s Image Generator automatically delivers higher fidelity seafloor images from raw sonar data.

AutoTRap Services

Charles River offers research services that use AutoTRap Onboard® to deliver technological advances in the field of automated target recognition, sonar sensor analysis, and artificial intelligence. We have experience working with commercial and government agencies that successfully use AutoTRap to locate a wide range of objects in sonar data in real time. Contact us to learn more about how Charles River and AutoTRap Onboard can help with your underwater projects.

Empower your Vehicle to Make Real-Time Decisions

Licensing our Technology

AutoTRap Onboard v1.0 works out of the box to detect certain objects on the Teledyne Gavia platform, and can be extended to detect other objects and work with other platforms and sonar systems.

Technical Requirements

  • Windows® 7, Windows® 10 operating system

  • Intel® Atom E3845 or better

  • EdgeTech 2205 sonar

Autonomy you can trust

Charles River Analytics uniquely combines agile innovation and leading-edge research with a decades-long track record of hardened engineering in austere environments to create best-in-class solutions to diverse, challenging problems.

For more information

On sales and licensing, or to connect with our engineers, contact us.
